Tugas PBO Digital Clock

TUGAS PBODIGITAL CLOCK

Pada kesempatan kali ini, saya mencoba membuat digital clock menggunakan Java dan GUI dengan awt dan swing. Pada kali ini ada 4 class yang dibuat, yakni

1. number : untuk digit yang tertera pada jam digital
2. display : untuk menampung dan fungsi fungsi sederhana jam
3. tampil : untuk menampilkan jam digital secara bukan GUI dengan format 24 jam
4. gui : menampilkan jam digital secara gui dengan button dan panel menggunakan JFrame

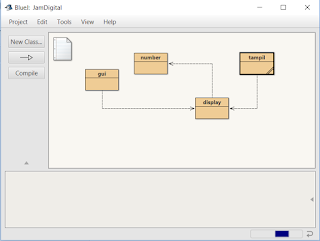

Berikut diagram class:

Berikut output jam secara non-gui iterasi

Berikut classnya:
1. number:

/**
 * Write a description of class Numbers here.
 *
 * @author (your name)
 * @version (a version number or a date)
 */
public class number
{
    private int limit;
    private int time;

    public number(int input)
    {
        limit = input;
        time = 0;
    }

    public int gettime(){
        return time;
    }

    public void settime(int input){
        if(input>=0 && input<limit) time=input;
    }

    public String tampil(){
        if(time<10){
            return "0"+time;
        }
        else{
            return "" +time;
        }
    }

    public void waktu(){
            time = (time+1)%limit;
    }
}

2. display

/**
 * Write a description of class clockdisplay here.
 *
 * @author (your name)
 * @version (a version number or a date)
 */

public class display
{
    private number jam,menit,detik;
    private String tampil;
    public display(){
        jam = new number(24);
        menit = new number(60);
        detik = new number(60);
        update();
    }

    public display(int j, int m, int d){
        jam = new number(24);
        menit = new number(60);
        detik = new number(60);
        setwaktu(j,m,d);
        update();
    }

    public void setwaktu(int j, int m, int d){
        jam.settime(j);
        menit.settime(m);
        detik.settime(d);
        update();
    }

    public void berdetik(){
        detik.waktu();
        if(detik.gettime()==0){
            menit.waktu();
            if(menit.gettime()==0)jam.waktu();
        }
        update();
    }

    public void update(){
        String tempj,tempm,tempd;
        if(jam.gettime()<10) tempj="0"+jam.gettime();
        else tempj = tempj=""+jam.gettime();
        if(menit.gettime()<10) tempm="0"+menit.gettime();
        else tempm=""+menit.gettime();
        if(detik.gettime()<10) tempd="0"+detik.gettime();
        else tempd=""+detik.gettime();
        tampil = tempj+":"+tempm+":"+tempd;
    }

    public void clock(){
        System.out.println(tampil);
    }

    public String gettampil(){
        return tampil;
    }

}

3.tampil

/**
 * Write a description of class tampil here.
 *
 * @author (your name)
 * @version (a version number or a date)
 */
public class tampil
{
    public static void disp() throws InterruptedException{
        display waktu = new display(22,58,57);
        while(true){
            waktu.clock();
            waktu.berdetik();
            Thread.sleep(1000);
            System.out.print('\u000C');
        }
    }

}

Dan berikut ketika diberi GUI

berikut kelas gui

 import java.awt.*;
 import java.awt.event.*;
 import javax.swing.*;
 import javax.swing.border.*;
 import java.util.Scanner;
 public class gui
 {
   private JFrame frame;
   private JLabel label;
   private display tampil;
   private boolean clockRunning = false; //jam digital belum berdetik
   private TimerThread timerThread;
   public int sHour, sMinute, sSecond;
   public void Clock()
   {
    makeFrame();
    tampil = new display(22,58,57);
   }
   private void start()
   {
    clockRunning = true; //jam digital berdetik
    timerThread = new TimerThread();
    timerThread.start();
   }
   private void stop()
   {
    clockRunning = false;
   }
   private void step()
   {
    tampil.berdetik();
    label.setText(tampil.gettampil());
   }
   private void showAbout()
   {
    JOptionPane.showMessageDialog (frame, "Jam Digital Sederhana","About Clock",JOptionPane.INFORMATION_MESSAGE);
   }
   private void quit()
   {
    System.exit(0);
   }
   private void makeFrame()
   {
    frame = new JFrame("Clock");
    JPanel contentPane = (JPanel)frame.getContentPane();
    contentPane.setBorder(new EmptyBorder(1,60,1,60));
    makeMenuBar(frame);
    contentPane.setLayout(new BorderLayout(12,12));
    label = new JLabel("00:00:00", SwingConstants.CENTER);
    Font displayFont = label.getFont().deriveFont(96.0f);
    label.setFont(displayFont);
    contentPane.add(label, BorderLayout.CENTER);
    JPanel toolbar = new JPanel();
    toolbar.setLayout(new GridLayout(1,0));
    JButton startButton = new JButton("Start");
    startButton.addActionListener(e->start());
    toolbar.add(startButton);
    JButton stopButton = new JButton("Stop");
    stopButton.addActionListener(e->stop());
    toolbar.add(stopButton);
    JButton stepButton = new JButton("Step");
    stepButton.addActionListener(e->step());
    toolbar.add(stepButton);
    JPanel flow = new JPanel();
    flow.add(toolbar);
    contentPane.add(flow, BorderLayout.SOUTH);
    frame.pack();
    Dimension d = Toolkit.getDefaultToolkit().getScreenSize();
    frame.setLocation(d.width/2 - frame.getWidth()/2, d.height/2 - frame.getHeight()/2);
    frame.setVisible(true);
   }
   private void makeMenuBar(JFrame frame)
   {
    final int SHORTCUT_MASK =
    Toolkit.getDefaultToolkit().getMenuShortcutKeyMask();
    JMenuBar menubar = new JMenuBar();
    frame.setJMenuBar(menubar);
    JMenu menu;
    JMenuItem item;
    menu = new JMenu("File");
    menubar.add(menu);
    item = new JMenuItem("About Clock...");
    item.addActionListener(e->showAbout());
    menu.add(item);
    menu.addSeparator();
    item = new JMenuItem("Quit");
    item.setAccelerator(KeyStroke.getKeyStroke(KeyEvent.VK_Q,SHORTCUT_MASK));
    item.addActionListener(e->quit());
    menu.add(item);
   }
   class TimerThread extends Thread
   {
    public void run()
    {
     while(clockRunning)
     {
      step();
      pause();
     }
   }
   private void pause()
   {
    try
    {
     Thread.sleep(900);
    }
    catch(InterruptedException exc)
    {
    }
   }
   }
 }
